Seven Mechanisms, One Clog: A Plunger Taxonomy

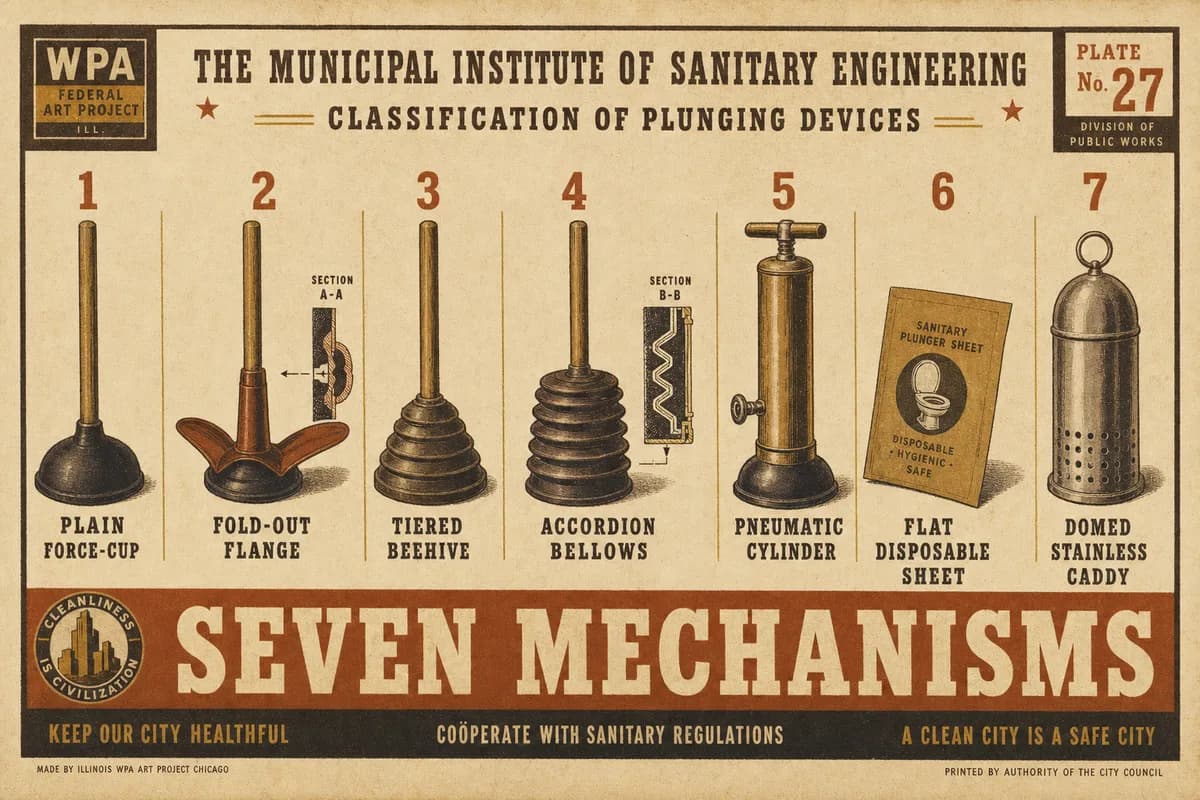

A plunger is not a single invention but a family of them. Stripped of handle finish and packaging, the device performs one operation — it forms a vacuum against the trapway of a fixture and then collapses that vacuum to move a column of water — and the household market has arrived at seven structurally distinct ways to do it. The Bureau assessed one representative of each: a plain force-cup, a narrow fold-out flange, a tiered contoured flange, an accordion bellows, a pneumatic air chamber, a single-use adhesive sheet, and a concealed-storage flange. Brand is incidental. Mechanism is the unit of analysis.

This is a desk review. The Bureau examined each manufacturer's published documentation, listed dimensions and materials, and publicly available product imagery; it did not acquire, install, or operate any unit. Where the text below projects a performance figure — seal retention, displaced volume, reach into the trapway — that figure is an engineering estimate derived from the listed geometry, not an observed result. The two remaining axes in the table, reach and intimidation, are assessed on appearance and specification alone, which is the only honest way to assess them.

The force-cup (control instrument). The Edward Tools Classic is the category reduced to its irreducible parts: a six-inch rubber cup on a twenty-three-and-a-quarter-inch wood handle, per the listing, with no secondary sealing feature of any kind. It seals by pressing the cup flat against the bowl outlet and drawing it back, and it seals only as well as the operator's aim and the bowl's geometry allow. The Bureau treats it as the baseline — the instrument every other entry is a documented deviation from. Its limitation is structural and honest: a flat cup cannot seat itself inside a modern elongated trapway, so a share of each stroke is lost around the rim. It is the plunger you already own and the one whose performance you have already, quietly, accepted.

The narrow flange. The SOFINNI adds the first real mechanism to the cup: a soft inner flange that folds out and seats directly inside the drain opening rather than across it. Per the manufacturer's description the same flange folds back to serve flat sink and tub drains, making it the one genuinely dual-fixture entry in the group. On the specification, the fold-out flange should hold its vacuum through more of the stroke than a flat cup, because it is sealing against the trapway wall instead of the bowl's sloped floor. The Bureau regards this as the smallest change that produces a measurable improvement — a flange is the difference between a cup that hopes and a cup that seats.

The tiered flange. The Korky BeehiveMAX takes the flange idea and commits to it as geometry. Its stepped, tapering head — the "beehive" — is engineered, per the listing, to seat against both older round bowls and modern elongated low-flow ones, the two trapway profiles a single household is most likely to contain. This is the entry's whole argument, and it is a good one: most sealing failures are geometry mismatches, and a head that self-centers across bowl shapes removes the most common variable before the stroke begins. From the published profile the Bureau projects the widest reliable seal envelope in the group. It is not the most forceful mechanism here, but it is the one least dependent on the operator getting the approach angle right.

The bellows. The JS Jackson accordion is the group's departure from suction into mechanical advantage. Its rigid, folded body compresses and rebounds like a hand pump, and per the product description it moves a larger, faster slug of water than a flexible cup driven by the same arm. The Bureau notes the tradeoff the specification makes plain: a bellows delivers more force with less finesse. It will clear a stubborn blockage a cup argues with for a minute, and it will also, on a poor seal, redistribute that force in directions the bathroom did not consent to. Rated on displaced volume alone it is the most capable manual tool in the group; rated on the odds of a clean operation, it asks more of the user than the flanges do.

The air chamber. The Olpchee abandons the cup entirely. It is a hand-primed pneumatic device that stores compressed air in a chamber and releases it, on a trigger pull, as a single pulse down the line — no rubber-to-porcelain seal, no stroke, no leverage. It is the only non-contact mechanism documented in the category, and on the specification it delivers by far the highest instantaneous force. It is also the one entry whose failure modes are worth stating plainly: a pressure pulse fired against an incomplete seal has to go somewhere, and it is the only plunger in the group the Bureau would decline to operate without reading the instructions first. It is the most powerful and the least forgiving instrument here — a specialist's tool a household reaches for twice a year and respects every time.

The disposable sheet. The PONGTU is the mechanism reduced almost out of existence. In place of a reusable cup it supplies an adhesive film that is pressed over the bowl opening, sealed to the rim, and punched by hand to drive a single pressure pulse through the water beneath it; the sheet is then discarded. Per the packaging there are no reusable parts, which makes it the only entry that leaves nothing behind to store, clean, or be seen owning. Its ceiling is correspondingly low — one film generates one modest pulse against a light blockage, and a serious clog will outlast the adhesive. The Bureau classifies it as the hygiene-first branch of the family: bought not for force but for the absence of a plunger in the corner of the room.

The concealed flange. The simplehuman is a narrow-flange plunger that has been engineered, as much as anything, not to be looked at. It ships in a weighted stainless caddy whose dome lid locks shut with a magnet and manages drips between uses, so the working tool disappears into a cylinder that reads as a fixture rather than a plumbing implement. The flange itself is conventional and competent; the design investment sits in the housing. The Bureau assesses the mechanism as sound and the priorities as openly stated — this is the entry that treats the plunger as a problem of the bathroom's sightlines first and the trapway second. Owners of the other six will store them out of view. This one was designed so that storing it out of view is the point.

The verdict. Ranked by mechanism rather than by finish, the Korky BeehiveMAX is the Bureau's pick. The tiered flange resolves the single failure that costs the flat force-cup most of its strokes — a seal that does not match the bowl — and it does so across both trapway geometries a household is likely to own, without demanding the force the bellows does or the clearance the air chamber does. The bellows and the narrow flanges are the reasonable runners-up, in that order of raw capability; the air chamber is the correct answer to a specific and infrequent question; the disposable sheet and the concealed caddy are answers to questions that are not, strictly, about clearing the drain. A plunger is a device for forming a vacuum against a trapway and then collapsing it, and every meaningful difference between these seven products is a difference of opinion about how to collapse it. The Bureau's opinion is the one that seats itself before the argument starts.
